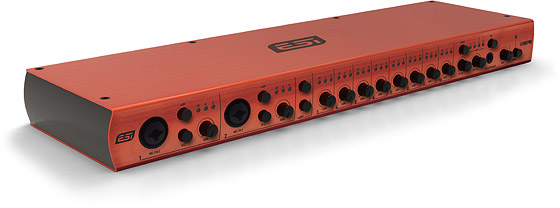

U108 PRE是一个特殊的USB音频录音接口,提供了一个非常基础需求的解决方案:一次连接大量专业话筒并同时多声道录音。一句话,10个48V幻象供电让你可以连接10个电容麦,或者8个电容麦+2个乐器信号输入。 U108 PRE共提供10个高品质的专业话筒前置放大器。前面板上有两个XLR接口,其他接口位于设备的后面板。对于所有独立的前置放大器,可以在需要时启用+48V幻象电源,并且可以为每个通道单独调整输入电平。输入电平也会通过前面板上的LED显示。当然,您可以同时使用所有输入通道。 另外还有两个可选的Hi-Z乐器输入。对于播放,提供8个独立的线路输出和单独的混合输出(通过集成监听混音器)。 U108 PRE为基于EWDM和DirectWIRE技术的WDM、ASIO 2.0和CoreAudio提供了极低延迟的驱动程序。这意味着该设备可以与PC和Mac上的所有常见应用程序一同工作。
U108 PRE是使用多个话筒时多声道录音的完美解决方案! FRONT | |
| BACK | |
|
Features- 10 input / 8 output 24-bit / 96kHz USB 2.0 Hi-Speed 24-bit Audio Interface
- 10 professional microphone preamps with XLR input and +48V phantom power support
- 2 Hi-Z high performance instrument inputs with 1/4" connector
- 8 line outputs with balanced 1/4" TRS connectors
- adjustable headphone output with 1/4" stereo phone connector
- separate stereo mix output with integrated monitoring mixer controlled on front panel
- ADC with 107dB(a) dynamic range
- DAC with 112dB(a) dynamic range
- supports up to 24-bit / 96kHz
- powered by included DC power supply
- supports Windows Vista, Windows 7, Windows 8.1 and Windows 10 with ASIO 2.0, MME, WDM and DirectSound incl. DirectWIRE support
- supports Mac OS X (10.7 and above) via CoreAudio USB audio driver
- includes license of Deckadance LE from Stanton
- includes Bitwig 8-Track digital audio workstation software
- includes license of inTone 2 ESI Edition from Audified
- dimensions roughly 45.0cm x 14.5cm x 4.5cm
宣传资料可供参考,最终产品若有细微更改以销售实物为准
|
